How to Create a Heatmap with Custom (Pre-Processed) Data in Zircon3D

Tami Liu

Zircon3D allows you to visualize not only raw sensor data, but also custom computed values using tools like Home Assistant template sensors.

This guide shows how to create a Temperature Delta heatmap, but the same approach works for any custom metric.

What is “Pre-Processed Data”?

Pre-processed data means:

Data that is calculated or transformed before visualization

Examples:

Temperature Delta (current vs target)
VPD (humidity + temperature)
Energy efficiency metrics
Custom scoring or alerts

Step 1 Create a Template Sensor

In Home Assistant:

template:
  - sensor:
      - name: "Living Room Temperature Delta"
        unique_id: "living_room_temperature_delta"
        unit_of_measurement: "°C"
        state: >
          {{ (
              state_attr('climate.living_room', 'current_temperature')
              - state_attr('climate.living_room', 'temperature')
            ) | abs | round(1) }}

Repeat for other rooms with consistent naming.

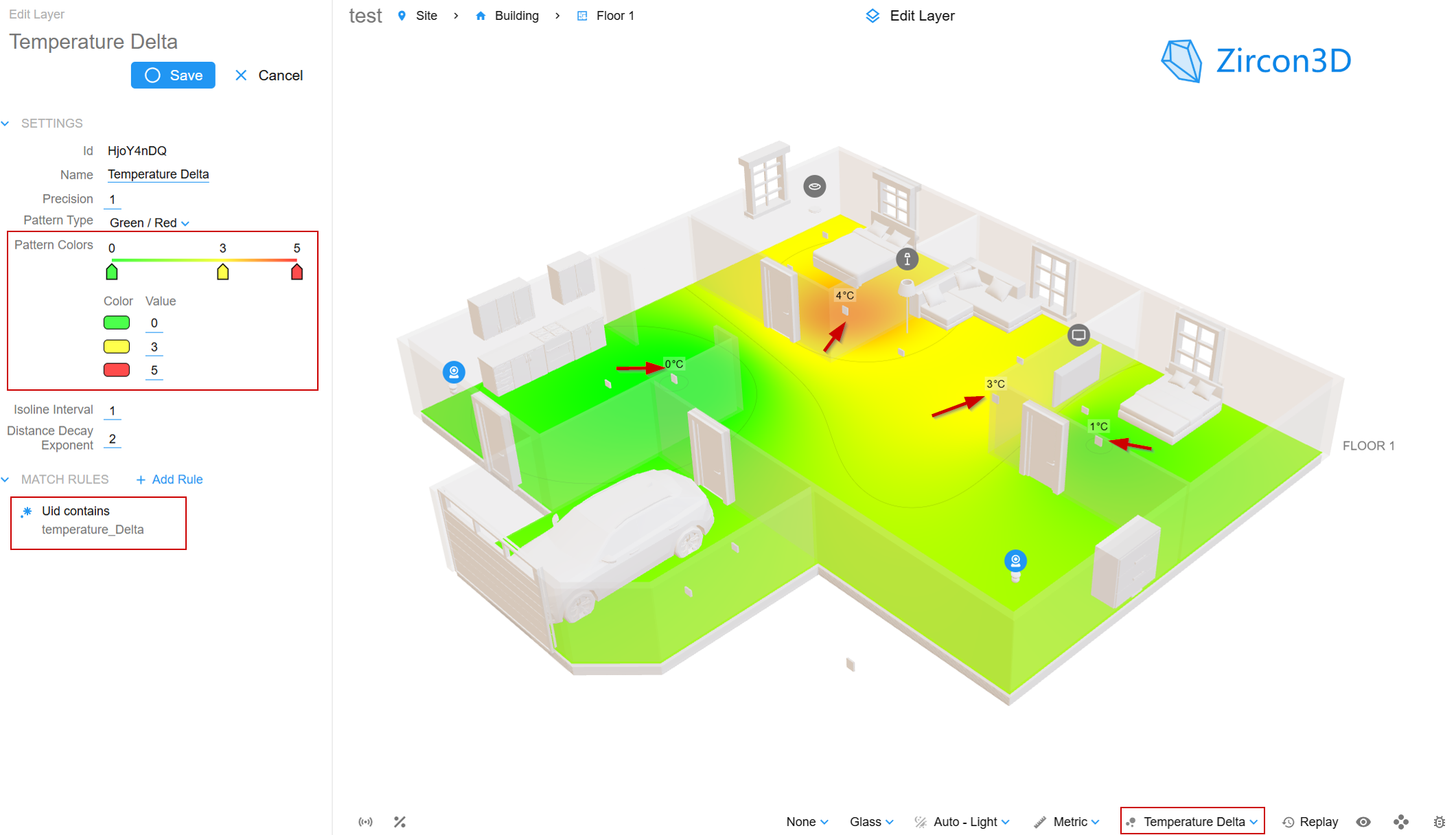

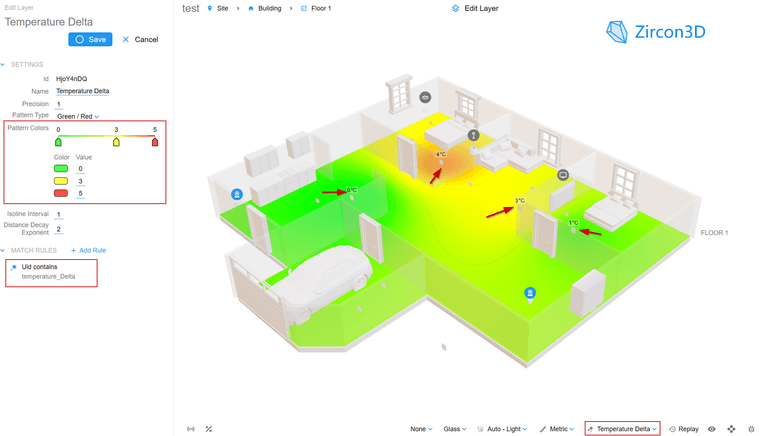

Step 2 Create a Heatmap in Zircon3D

Add a new heatmap layer
Name it (e.g., Temperature Delta)
Select your template sensors

Step 3 Use Matching Rules (Recommended)

To scale easily across rooms:

Use a rule like:
uid contains temperature_delta

This automatically includes all matching sensors.

Step 4 Configure Color Mapping

Example:

0°C → Green (good)
3°C → Yellow (moderate)
5°C → Red (needs attention)

Lower values = better comfort

Step 5 Assign Devices to Floorplan

Place climate/HVAC devices in your 3D layout
Or update existing ones to use the heatmap

Step 6 View the Heatmap

Switch to the heatmap layer to see your data visualized in 3D.

Beyond Temperature Delta

You can apply this method to:

Greenhouse climate (VPD, humidity)
Energy usage per zone
Occupancy and utilization
Air quality metrics

Zircon3D
